#GF85-1359
PRODUCT DESCRIPTION

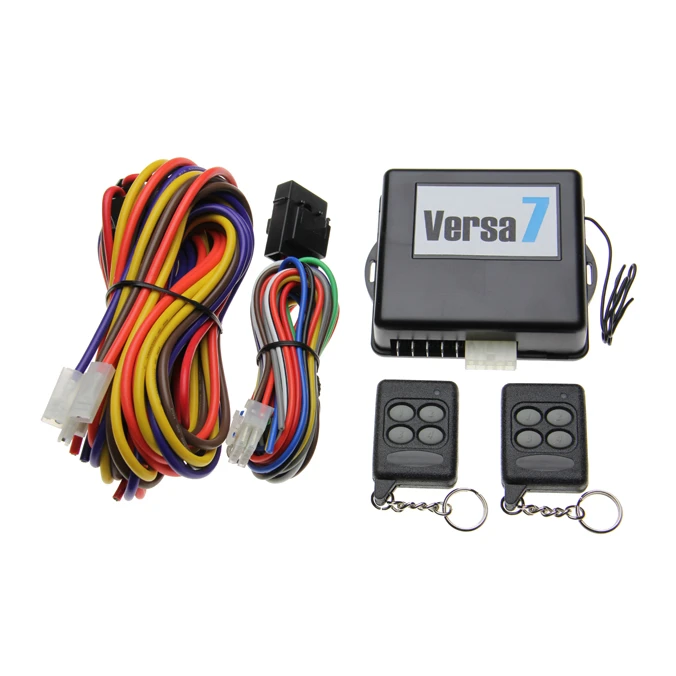

7 Channel wireless remote control receiver/transmitter combination. First 2 channels have 30 amp relay outputs. Channels 3-7 are 500 mA output to power external relays (not included). Each circuit is controlled separately from the buttons on the remote keychain transmitter.
Code learning feature on receiver for easy programming. DIP switches on receiver to select activation as long as transmitter button is depressed or momentary pulse for channels 1, 2, 6 and 7.
Ignition lockout option disables channels 1-4 when powered. Switch connections for channels 1 and 2 allow for manual switch (not included) to activate in addition to remote transmitter.
Can be operated from 12 Volt DC power supply or battery. Only draws 0.15 amps.
Receiver has 14″ antenna. 100 foot range with a clear line of sight. Includes two keychain style 4-pushbutton transmitters and full instructions with application examples.
