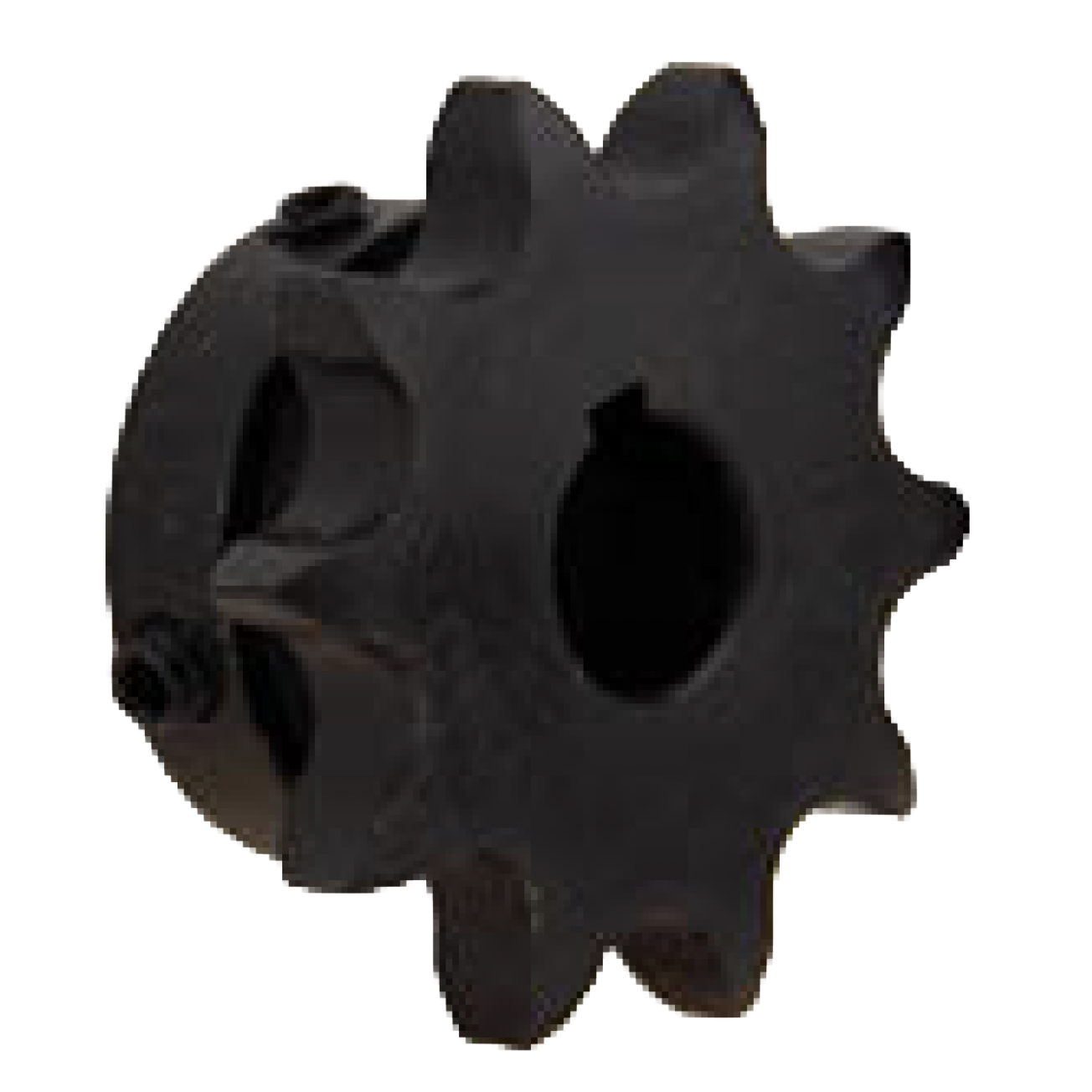

50 Series Bored-To-Size Sprockets

PRODUCT DESCRIPTION

Type BS (Bored to Size)
One-piece Forged Construction
Hardened teeth – 2 set screws
Black oxide finish
Keyway is on center line of tooth
Setscrews are on keyway and 90°

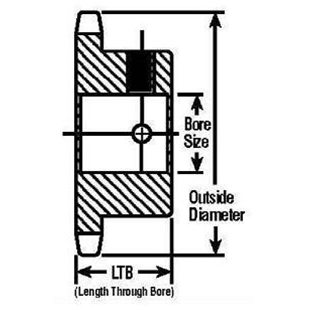

Hub sizes vary to suit different bore sizes

Contact a Sales Rep

View All Products

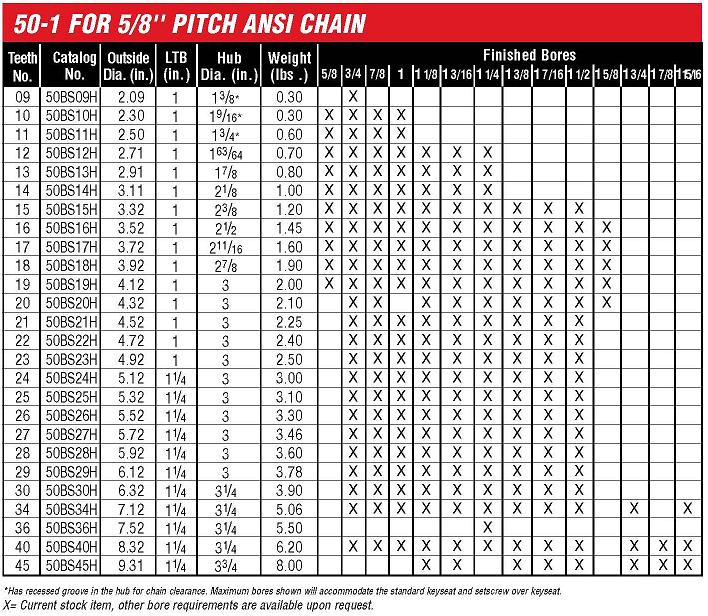

Item ID	Ext Desc	Weight (lbs)
S50BS10H-B	#50 Sprocket 10 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.48
S50BS10H-C	#50 Sprocket 10 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.46
S50BS10H-D	#50 Sprocket 10 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.4
S50BS10H-F	#50 Sprocket 10 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.34
S50BS11H-B	#50 Sprocket 11 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.62
S50BS11H-C	#50 Sprocket 11 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.6
S50BS11H-D	#50 Sprocket 11 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.54
S50BS11H-F	#50 Sprocket 11 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.48
S50BS12H-B	#50 Sprocket 12 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.8
S50BS12H-C	#50 Sprocket 12 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.8
S50BS12H-D	#50 Sprocket 12 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.74
S50BS12H-F	#50 Sprocket 12 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.66
S50BS12H-G	#50 Sprocket 12 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.6
S50BS12H-H	#50 Sprocket 12 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.58
S50BS12H-I	#50 Sprocket 12 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.54
S50BS13H-B	#50 Sprocket 13 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.86
S50BS13H-C	#50 Sprocket 13 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.82
S50BS13H-D	#50 Sprocket 13 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.78
S50BS13H-F	#50 Sprocket 13 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.72
S50BS13H-G	#50 Sprocket 13 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.66
S50BS13H-H	#50 Sprocket 13 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.64
S50BS13H-I	#50 Sprocket 13 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.6
S50BS14H-B	#50 Sprocket 14 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.08
S50BS14H-C	#50 Sprocket 14 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.04
S50BS14H-D	#50 Sprocket 14 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1
S50BS14H-F	#50 Sprocket 14 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.94
S50BS14H-G	#50 Sprocket 14 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.88
S50BS14H-H	#50 Sprocket 14 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.86
S50BS14H-I	#50 Sprocket 14 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.82
S50BS15H-B	#50 Sprocket 15 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.32
S50BS15H-C	#50 Sprocket 15 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.28
S50BS15H-D	#50 Sprocket 15 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.22
S50BS15H-F	#50 Sprocket 15 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.18
S50BS15H-G	#50 Sprocket 15 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.12
S50BS15H-H	#50 Sprocket 15 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.08
S50BS15H-I	#50 Sprocket 15 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.06
S50BS15H-J	#50 Sprocket 15 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.98
S50BS15H-K	#50 Sprocket 15 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	0.94
S50BS15H-L	#50 Sprocket 15 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	0.9
S50BS16H-B	#50 Sprocket 16 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.5
S50BS16H-C	#50 Sprocket 16 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.46
S50BS16H-D	#50 Sprocket 16 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.42
S50BS16H-F	#50 Sprocket 16 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.36
S50BS16H-G	#50 Sprocket 16 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.3
S50BS16H-H	#50 Sprocket 16 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.26
S50BS16H-I	#50 Sprocket 16 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.22
S50BS16H-J	#50 Sprocket 16 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.16
S50BS16H-K	#50 Sprocket 16 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.16
S50BS16H-L	#50 Sprocket 16 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.08
S50BS16H-N	#50 Sprocket 16 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.74
S50BS17H-B	#50 Sprocket 17 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.72
S50BS17H-C	#50 Sprocket 17 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.7
S50BS17H-D	#50 Sprocket 17 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.68
S50BS17H-F	#50 Sprocket 17 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.58
S50BS17H-G	#50 Sprocket 17 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.54
S50BS17H-H	#50 Sprocket 17 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.5
S50BS17H-I	#50 Sprocket 17 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.46
S50BS17H-J	#50 Sprocket 17 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.4
S50BS17H-K	#50 Sprocket 17 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.34
S50BS17H-L	#50 Sprocket 17 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.3
S50BS17H-N	#50 Sprocket 17 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.22
S50BS18H-B	#50 Sprocket 18 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.98
S50BS18H-C	#50 Sprocket 18 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.94
S50BS18H-D	#50 Sprocket 18 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.88
S50BS18H-F	#50 Sprocket 18 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.82
S50BS18H-G	#50 Sprocket 18 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.76
S50BS18H-H	#50 Sprocket 18 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.74
S50BS18H-I	#50 Sprocket 18 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.72
S50BS18H-J	#50 Sprocket 18 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.64
S50BS18H-K	#50 Sprocket 18 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.58
S50BS18H-L	#50 Sprocket 18 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.56
S50BS18H-N	#50 Sprocket 18 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.48
S50BS19H-B	#50 Sprocket 19 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.18
S50BS19H-C	#50 Sprocket 19 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.14
S50BS19H-D	#50 Sprocket 19 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.12
S50BS19H-F	#50 Sprocket 19 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.06
S50BS19H-G	#50 Sprocket 19 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.98
S50BS19H-H	#50 Sprocket 19 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.96
S50BS19H-I	#50 Sprocket 19 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.92
S50BS19H-J	#50 Sprocket 19 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.86
S50BS19H-K	#50 Sprocket 19 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.8
S50BS19H-L	#50 Sprocket 19 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.76
S50BS19H-N	#50 Sprocket 19 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.68
S50BS20H-C	#50 Sprocket 20 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.26
S50BS20H-D	#50 Sprocket 20 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.22
S50BS20H-F	#50 Sprocket 20 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.28
S50BS20H-G	#50 Sprocket 20 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.08
S50BS20H-H	#50 Sprocket 20 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.08
S50BS20H-I	#50 Sprocket 20 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.04
S50BS20H-J	#50 Sprocket 20 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.96
S50BS20H-K	#50 Sprocket 20 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.9
S50BS20H-L	#50 Sprocket 20 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.86
S50BS20H-N	#50 Sprocket 20 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.8
S50BS21H-C	#50 Sprocket 21 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.38
S50BS21H-D	#50 Sprocket 21 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.32
S50BS21H-F	#50 Sprocket 21 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.26
S50BS21H-G	#50 Sprocket 21 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.2
S50BS21H-H	#50 Sprocket 21 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.18
S50BS21H-I	#50 Sprocket 21 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.14
S50BS21H-J	#50 Sprocket 21 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.08
S50BS21H-K	#50 Sprocket 21 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.04
S50BS21H-L	#50 Sprocket 21 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2
S50BS22H-C	#50 Sprocket 22 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.5
S50BS22H-D	#50 Sprocket 22 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.46
S50BS22H-F	#50 Sprocket 22 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.48
S50BS22H-G	#50 Sprocket 22 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.32
S50BS22H-H	#50 Sprocket 22 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.3
S50BS22H-I	#50 Sprocket 22 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.26
S50BS22H-J	#50 Sprocket 22 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.2
S50BS22H-K	#50 Sprocket 22 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.14
S50BS22H-L	#50 Sprocket 22 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.1
S50BS23H-C	#50 Sprocket 23 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.62
S50BS23H-D	#50 Sprocket 23 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.58
S50BS23H-F	#50 Sprocket 23 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.56
S50BS23H-G	#50 Sprocket 23 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.46
S50BS23H-H	#50 Sprocket 23 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.58
S50BS23H-I	#50 Sprocket 23 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.4
S50BS23H-J	#50 Sprocket 23 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.34
S50BS23H-K	#50 Sprocket 23 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.28
S50BS23H-L	#50 Sprocket 23 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.24
S50BS24H-C	#50 Sprocket 24 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.22
S50BS24H-D	#50 Sprocket 24 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.16
S50BS24H-F	#50 Sprocket 24 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.12
S50BS24H-G	#50 Sprocket 24 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3
S50BS24H-H	#50 Sprocket 24 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3
S50BS24H-I	#50 Sprocket 24 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.94
S50BS24H-J	#50 Sprocket 24 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.86
S50BS24H-K	#50 Sprocket 24 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.78
S50BS24H-L	#50 Sprocket 24 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.74
S50BS25H-C	#50 Sprocket 25 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.36
S50BS25H-D	#50 Sprocket 25 teeth, 7/8" Bore , Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.28
S50BS25H-F	#50 Sprocket 25 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.34
S50BS25H-G	#50 Sprocket 25 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.16
S50BS25H-H	#50 Sprocket 25 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.12
S50BS25H-I	#50 Sprocket 25 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.08
S50BS25H-J	#50 Sprocket 25 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.98
S50BS25H-K	#50 Sprocket 25 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.92
S50BS25H-L	#50 Sprocket 25 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.88
S50BS26H-C	#50 Sprocket 26 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.5
S50BS26H-D	#50 Sprocket 26 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.44
S50BS26H-F	#50 Sprocket 26 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.5
S50BS26H-G	#50 Sprocket 26 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.3
S50BS26H-H	#50 Sprocket 26 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.26
S50BS26H-I	#50 Sprocket 26 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.22
S50BS26H-J	#50 Sprocket 26 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.14
S50BS26H-K	#50 Sprocket 26 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.08
S50BS26H-L	#50 Sprocket 26 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.02
S50BS27H-C	#50 Sprocket 27 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.64
S50BS27H-D	#50 Sprocket 27 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.62
S50BS27H-F	#50 Sprocket 27 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.54
S50BS27H-G	#50 Sprocket 27 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.46
S50BS27H-H	#50 Sprocket 27 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.42
S50BS27H-I	#50 Sprocket 27 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.38
S50BS27H-J	#50 Sprocket 27 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.28
S50BS27H-K	#50 Sprocket 27 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.22
S50BS27H-L	#50 Sprocket 27 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.18
S50BS28H-C	#50 Sprocket 28 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.8
S50BS28H-D	#50 Sprocket 28 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.74
S50BS28H-F	#50 Sprocket 28 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.7
S50BS28H-G	#50 Sprocket 28 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.6
S50BS28H-H	#50 Sprocket 28 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.56
S50BS28H-I	#50 Sprocket 28 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.52
S50BS28H-J	#50 Sprocket 28 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.44
S50BS28H-K	#50 Sprocket 28 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.38
S50BS28H-L	#50 Sprocket 28 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.34
S50BS29H-C	#50 Sprocket 29 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.98
S50BS29H-D	#50 Sprocket 29 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	3.92
S50BS29H-F	#50 Sprocket 29 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.84
S50BS29H-G	#50 Sprocket 29 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.76
S50BS29H-H	#50 Sprocket 29 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.74
S50BS29H-I	#50 Sprocket 29 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.7
S50BS29H-J	#50 Sprocket 29 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.6
S50BS29H-K	#50 Sprocket 29 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.54
S50BS29H-L	#50 Sprocket 29 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.48
S50BS30H-C	#50 Sprocket 30 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	4.46
S50BS30H-D	#50 Sprocket 30 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	4.38
S50BS30H-F	#50 Sprocket 30 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.48
S50BS30H-G	#50 Sprocket 30 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.26
S50BS30H-H	#50 Sprocket 30 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.22
S50BS30H-I	#50 Sprocket 30 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.18
S50BS30H-J	#50 Sprocket 30 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.06
S50BS30H-K	#50 Sprocket 30 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.02
S50BS30H-L	#50 Sprocket 30 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.12
S50BS32H-H	#50 Sprocket 32 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.56
S50BS34H-C	#50 Sprocket 34 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	5.2
S50BS34H-D	#50 Sprocket 34 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	5.14
S50BS34H-F	#50 Sprocket 34 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.06
S50BS34H-G	#50 Sprocket 34 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5
S50BS34H-H	#50 Sprocket 34 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.92
S50BS34H-I	#50 Sprocket 34 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.92
S50BS34H-J	#50 Sprocket 34 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.8
S50BS34H-K	#50 Sprocket 34 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5
S50BS34H-L	#50 Sprocket 34 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.7
S50BS34H-O	#50 Sprocket 34 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.5
S50BS34H-Q	#50 Sprocket 34 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.3
S50BS36H-F	#50 Sprocket 36 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.4
S50BS36H-H	#50 Sprocket 36 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.4
S50BS36H-I	#50 Sprocket 36 teeth, 1-1/4 " Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.2
S50BS40H-C	#50 Sprocket 40 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	6.5
S50BS40H-D	#50 Sprocket 40 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	6.42
S50BS40H-F	#50 Sprocket 40 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.62
S50BS40H-G	#50 Sprocket 40 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.28
S50BS40H-H	#50 Sprocket 40 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.26
S50BS40H-I	#50 Sprocket 40 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.46
S50BS40H-J	#50 Sprocket 40 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.1
S50BS40H-K	#50 Sprocket 40 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.06
S50BS40H-L	#50 Sprocket 40 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.96
S50BS40H-O	#50 Sprocket 40 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.74
S50BS40H-P	#50 Sprocket 40 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	5.6
S50BS40H-Q	#50 Sprocket 40 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	5.58
S50BS45H-H	#50 Sprocket 45 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	8.1
S50BS54-F	#50 Sprocket 54 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	10.75
S50BS9H-C	#50 Sprocket 9 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.26
