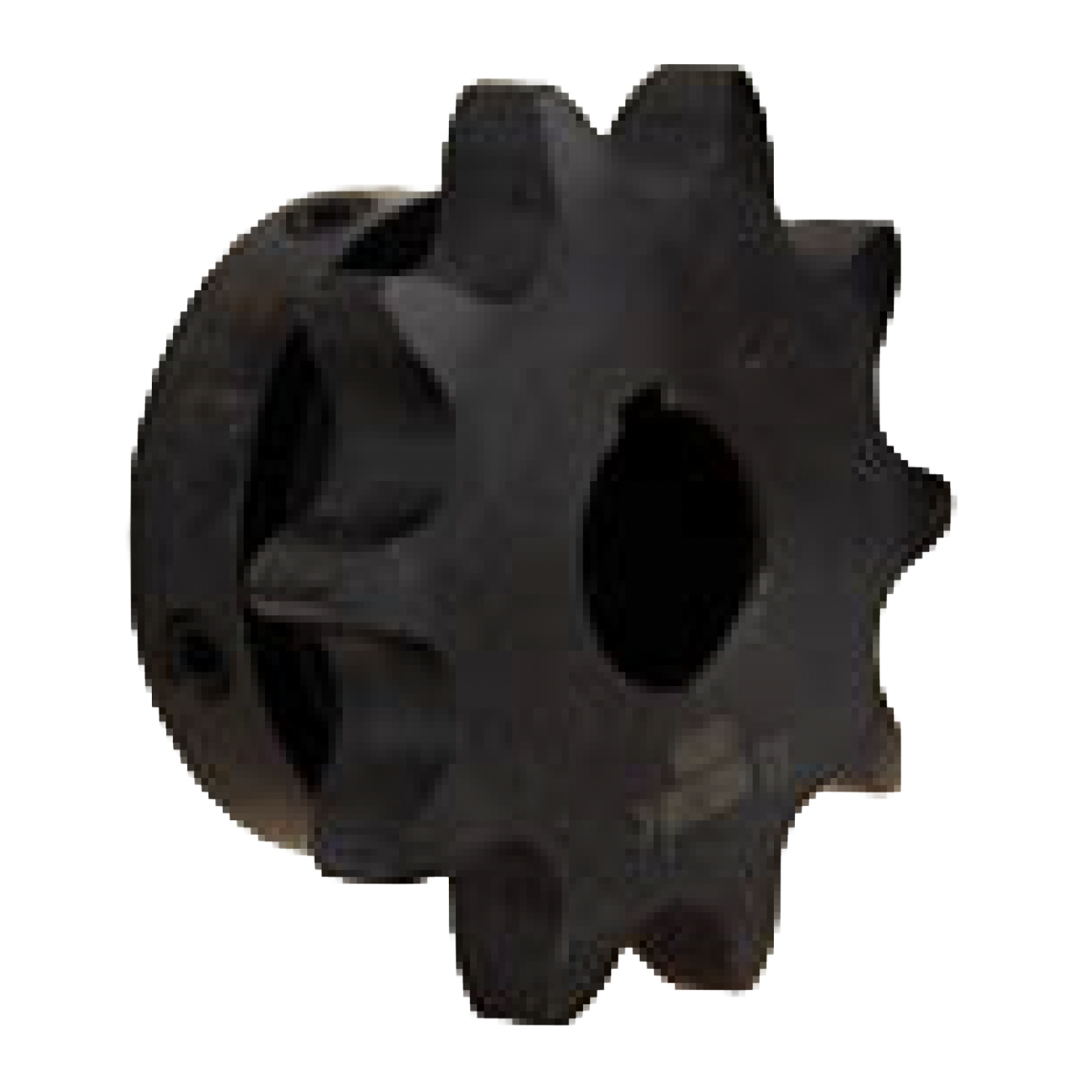

60 Series Bored-To-Size Sprockets

PRODUCT DESCRIPTION

Type BS (Bored to Size)
One-piece Forged Construction
Hardened teeth – 2 set screws
Black oxide finish
Keyway is on center line of tooth
Setscrews are on keyway and 90°
Hub sizes vary to suit different bore sizes

Contact a Sales Rep

View All Products

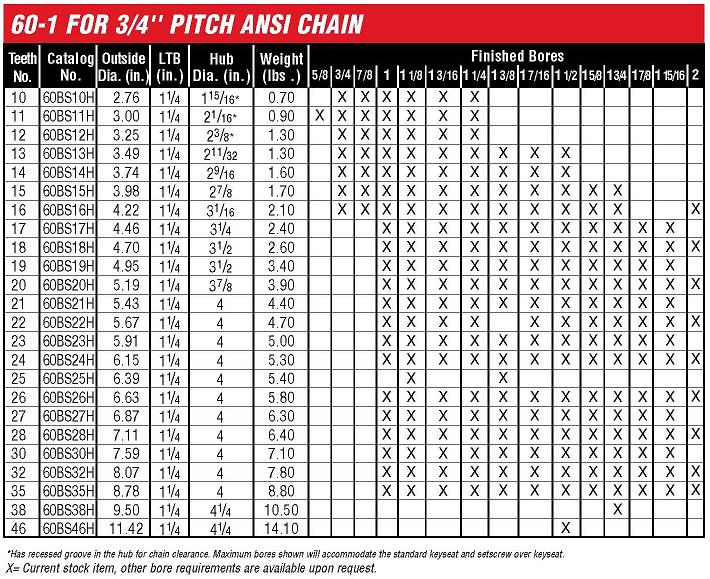

Item ID	Ext Desc	Weight (lbs)
S60BS10H-C	#60 Sprocket 10 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.9
S60BS10H-D	#60 Sprocket 10 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	0.84
S60BS10H-F	#60 Sprocket 10 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.78
S60BS10H-G	#60 Sprocket 10 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.7
S60BS10H-H	#60 Sprocket 10 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.66
S60BS10H-I	#60 Sprocket 10 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.62
S60BS11H-B	#60 Sprocket 11 teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.2
S60BS11H-C	#60 Sprocket 11 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.12
S60BS11H-D	#60 Sprocket 11 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.08
S60BS11H-F	#60 Sprocket 11 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1
S60BS11H-G	#60 Sprocket 11 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.92
S60BS11H-H	#60 Sprocket 11 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.9
S60BS11H-I	#60 Sprocket 11 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	0.84
S60BS12H-C	#60 Sprocket 12 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.46
S60BS12H-D	#60 Sprocket 12 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.4
S60BS12H-F	#60 Sprocket 12 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.34
S60BS12H-G	#60 Sprocket 12 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.26
S60BS12H-H	#60 Sprocket 12 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.22
S60BS12H-I	#60 Sprocket 12 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.18
S60BS13H-C	#60 Sprocket 13 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.68
S60BS13H-D	#60 Sprocket 13 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.62
S60BS13H-F	#60 Sprocket 13 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.54
S60BS13H-G	#60 Sprocket 13 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.46
S60BS13H-H	#60 Sprocket 13 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.44
S60BS13H-I	#60 Sprocket 13 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.38
S60BS13H-J	#60 Sprocket 13 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.36
S60BS13H-K	#60 Sprocket 13 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.24
S60BS13H-L	#60 Sprocket 13 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.2
S60BS13H-N	#60 Sprocket 13 Teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1
S60BS14H-C	#60 Sprocket 14 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2
S60BS14H-D	#60 Sprocket 14 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	1.94
S60BS14H-E	#60 Sprocket 14 teeth, 15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.9
S60BS14H-F	#60 Sprocket 14 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.86
S60BS14H-G	#60 Sprocket 14 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.78
S60BS14H-H	#60 Sprocket 14 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.78
S60BS14H-I	#60 Sprocket 14 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.72
S60BS14H-J	#60 Sprocket 14 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1.68
S60BS14H-K	#60 Sprocket 14 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.56
S60BS14H-L	#60 Sprocket 14 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.52
S60BS15H-C	#60 Sprocket 15 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.46
S60BS15H-D	#60 Sprocket 15 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.42
S60BS15H-F	#60 Sprocket 15 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.32
S60BS15H-G	#60 Sprocket 15 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.32
S60BS15H-H	#60 Sprocket 15 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.22
S60BS15H-I	#60 Sprocket 15 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.16
S60BS15H-J	#60 Sprocket 15 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.08
S60BS15H-K	#60 Sprocket 15 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.02
S60BS15H-L	#60 Sprocket 15 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.04
S60BS15H-N	#60 Sprocket 15 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.88
S60BS15H-O	#60 Sprocket 15 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	1.76
S60BS16H-C	#60 Sprocket 16 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.82
S60BS16H-D	#60 Sprocket 16 teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart	2.76
S60BS16H-F	#60 Sprocket 16 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.66
S60BS16H-G	#60 Sprocket 16 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.62
S60BS16H-H	#60 Sprocket 16 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.58
S60BS16H-I	#60 Sprocket 16 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.52
S60BS16H-J	#60 Sprocket 16 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.42
S60BS16H-K	#60 Sprocket 16 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.38
S60BS16H-L	#60 Sprocket 16 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.34
S60BS16H-N	#60 Sprocket 16 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.24
S60BS16H-O	#60 Sprocket 16 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.1
S60BS16H-Q	#60 Sprocket 16 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	1.8
S60BS16H-R	#60 Sprocket 16 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	1.82
S60BS17H-F	#60 Sprocket 17 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.08
S60BS17H-G	#60 Sprocket 17 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.98
S60BS17H-H	#60 Sprocket 17 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.9
S60BS17H-I	#60 Sprocket 17 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.92
S60BS17H-J	#60 Sprocket 17 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	2.92
S60BS17H-K	#60 Sprocket 17 teeth, 1 7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.74
S60BS17H-L	#60 Sprocket 17 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.7
S60BS17H-N	#60 Sprocket 17 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.62
S60BS17H-O	#60 Sprocket 17 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.52
S60BS17H-P	#60 Sprocket 17 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	2.36
S60BS17H-Q	#60 Sprocket 17 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	2.3
S60BS18H-F	#60 Sprocket 18 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.56
S60BS18H-G	#60 Sprocket 18 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.46
S60BS18H-H	#60 Sprocket 18 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.44
S60BS18H-I	#60 Sprocket 18 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.4
S60BS18H-J	#60 Sprocket 18 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.42
S60BS18H-K	#60 Sprocket 18 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.24
S60BS18H-L	#60 Sprocket 18 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.18
S60BS18H-N	#60 Sprocket 18 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.12
S60BS18H-O	#60 Sprocket 18 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	2.98
S60BS18H-P	#60 Sprocket 18 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	2.96
S60BS18H-Q	#60 Sprocket 18 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	2.9
S60BS18H-R	#60 Sprocket 18 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	2.84
S60BS19H-F	#60 Sprocket 19 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.74
S60BS19H-G	#60 Sprocket 19 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.7
S60BS19H-H	#60 Sprocket 19 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.78
S60BS19H-I	#60 Sprocket 19 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.62
S60BS19H-J	#60 Sprocket 19 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	3.52
S60BS19H-K	#60 Sprocket 19 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.46
S60BS19H-L	#60 Sprocket 19 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.38
S60BS19H-N	#60 Sprocket 19 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.4
S60BS19H-O	#60 Sprocket 19 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.2
S60BS19H-P	#60 Sprocket 19 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	3.06
S60BS19H-Q	#60 Sprocket 19 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	3
S60BS20H-F	#60 Sprocket 20 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.44
S60BS20H-G	#60 Sprocket 20 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.34
S60BS20H-H	#60 Sprocket 20 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.38
S60BS20H-I	#60 Sprocket 20 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.28
S60BS20H-J	#60 Sprocket 20 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.18
S60BS20H-K	#60 Sprocket 20 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.14
S60BS20H-L	#60 Sprocket 20 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.12
S60BS20H-N	#60 Sprocket 20 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.02
S60BS20H-O	#60 Sprocket 20 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	3.9
S60BS20H-P	#60 Sprocket 20 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	3.76
S60BS20H-Q	#60 Sprocket 20 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	3.7
S60BS20H-R	#60 Sprocket 20 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	3.6
S60BS20H-SP	#60 BS Type Sprocket, 20 teeth, Hardened, 1.494" Bore	3.2
S60BS21H-F	#60 Sprocket 21 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.88
S60BS21H-G	#60 Sprocket 21 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.8
S60BS21H-H	#60 Sprocket 21 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.76
S60BS21H-I	#60 Sprocket 21 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.86
S60BS21H-J	#60 Sprocket 21 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.74
S60BS21H-K	#60 Sprocket 21 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.66
S60BS21H-L	#60 Sprocket 21 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.5
S60BS21H-N	#60 Sprocket 21 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.56
S60BS21H-O	#60 Sprocket 21 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.42
S60BS21H-P	#60 Sprocket 21 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.14
S60BS21H-Q	#60 Sprocket 21 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.08
S60BS22H-F	#60 Sprocket 22 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.1
S60BS22H-G	#60 Sprocket 22 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.02
S60BS22H-H	#60 Sprocket 22 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	4.98
S60BS22H-I	#60 Sprocket 22 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.06
S60BS22H-K	#60 Sprocket 22 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.78
S60BS22H-L	#60 Sprocket 22 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.86
S60BS22H-N	#60 Sprocket 22 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.62
S60BS22H-O	#60 Sprocket 22 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.52
S60BS22H-P	#60 Sprocket 22 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.36
S60BS22H-Q	#60 Sprocket 22 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.32
S60BS22H-R	#60 Sprocket 22 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.36
S60BS23H-F	#60 Sprocket 23 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.36
S60BS23H-G	#60 Sprocket 23 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.28
S60BS23H-H	#60 Sprocket 23 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.2
S60BS23H-I	#60 Sprocket 23 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.28
S60BS23H-J	#60 Sprocket 23 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.12
S60BS23H-K	#60 Sprocket 23 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.08
S60BS23H-L	#60 Sprocket 23 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5
S60BS23H-N	#60 Sprocket 23 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.88
S60BS23H-O	#60 Sprocket 23 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	4.76
S60BS23H-P	#60 Sprocket 23 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.64
S60BS23H-Q	#60 Sprocket 23 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.56
S60BS24H-F	#60 Sprocket 24 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.74
S60BS24H-G	#60 Sprocket 24 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.56
S60BS24H-H	#60 Sprocket 24 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.5
S60BS24H-I	#60 Sprocket 24 teeth, 1 1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.54
S60BS24H-J	#60 Sprocket 24 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.38
S60BS24H-K	#60 Sprocket 24 teeth, 1 7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.32
S60BS24H-L	#60 Sprocket 24 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.24
S60BS24H-N	#60 Sprocket 24 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.12
S60BS24H-O	#60 Sprocket 24 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.02
S60BS24H-P	#60 Sprocket 24 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.9
S60BS24H-Q	#60 Sprocket 24 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.84
S60BS24H-R	#60 Sprocket 24 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	4.88
S60BS25H-G	#60 Sprocket 25 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4"Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.68
S60BS25H-J	#60 BS Type Sprocket, 25 teeth, Hardened, 1.375" Bore, 5/16" Keyway, (2) Setscrews, Black Oxide Finish	5.6
S60BS26H-F	#60 Sprocket 26 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.14
S60BS26H-G	#60 Sprocket 26 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.08
S60BS26H-H	#60 Sprocket 26 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.04
S60BS26H-I	#60 Sprocket 26 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6
S60BS26H-J	#60 Sprocket 26 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	5.96
S60BS26H-K	#60 Sprocket 26 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.88
S60BS26H-L	#60 Sprocket 26 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.82
S60BS26H-N	#60 Sprocket 26 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.68
S60BS26H-O	#60 Sprocket 26 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.62
S60BS26H-P	#60 Sprocket 26 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	5.46
S60BS26H-Q	#60 Sprocket 26 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	5.4
S60BS26H-R	#60 Sprocket 26 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	5.32
S60BS27H-F	#60 Sprocket 27 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.48
S60BS27H-G	#60 Sprocket 27 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.38
S60BS27H-H	#60 Sprocket 27 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.38
S60BS27H-I	#60 Sprocket 27 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.3
S60BS27H-J	#60 Sprocket 27 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.26
S60BS27H-K	#60 Sprocket 27 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.16
S60BS27H-L	#60 Sprocket 27 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.12
S60BS27H-N	#60 Sprocket 27 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.04
S60BS27H-O	#60 Sprocket 27 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	5.92
S60BS27H-P	#60 Sprocket 27 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	5.76
S60BS27H-Q	#60 Sprocket 27 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	5.7
S60BS28H-F	#60 Sprocket 28 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.8
S60BS28H-G	#60 Sprocket 28 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.72
S60BS28H-H	#60 Sprocket 28 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.68
S60BS28H-I	#60 Sprocket 28 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.6
S60BS28H-J	#60 Sprocket 28 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	6.52
S60BS28H-K	#60 Sprocket 28 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.48
S60BS28H-L	#60 Sprocket 28 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.4
S60BS28H-N	#60 Sprocket 28 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.3
S60BS28H-O	#60 Sprocket 28 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.2
S60BS28H-P	#60 Sprocket 28 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	6.1
S60BS28H-Q	#60 Sprocket 28 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	6
S60BS28H-R	#60 Sprocket 28 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	5.94
S60BS30H-F	#60 Sprocket 30 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	7.42
S60BS30H-G	#60 Sprocket 30 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	7.42
S60BS30H-H	#60 Sprocket 30 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	7.3
S60BS30H-I	#60 Sprocket 30 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	7.28
S60BS30H-J	#60 Sprocket 30 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	7.26
S60BS30H-K	#60 Sprocket 30 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	7.16
S60BS30H-L	#60 Sprocket 30 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	7.12
S60BS30H-N	#60 Sprocket 30 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.98
S60BS30H-O	#60 Sprocket 30 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	6.86
S60BS30H-P	#60 Sprocket 30 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	6.72
S60BS30H-Q	#60 Sprocket 30 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	6.68
S60BS30H-R	#60 Sprocket 30 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	6.4
S60BS32H-F	#60 Sprocket 32 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	8.14
S60BS32H-G	#60 Sprocket 32 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	8.08
S60BS32H-H	#60 Sprocket 32 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	8
S60BS32H-I	#60 Sprocket 32 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	7.96
S60BS32H-J	#60 Sprocket 32 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	7.9
S60BS32H-K	#60 Sprocket 32 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	7.76
S60BS32H-L	#60 Sprocket 32 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	7.76
S60BS32H-N	#60 Sprocket 32 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	7.62
S60BS32H-O	#60 Sprocket 32 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	7.5
S60BS32H-P	#60 Sprocket 32 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	7.3
S60BS32H-Q	#60 Sprocket 32 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	7.26
S60BS32H-R	#60 Sprocket 32 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	7.56
S60BS34H-K	#60 Sprocket 34 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	8.44
S60BS35H-F	#60 Sprocket 35 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	9.5
S60BS35H-G	#60 Sprocket 35 teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	9.16
S60BS35H-H	#60 Sprocket 35 teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	9.16
S60BS35H-I	#60 Sprocket 35 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	9.04
S60BS35H-J	#60 Sprocket 35 teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	9.02
S60BS35H-K	#60 Sprocket 35 teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	8.9
S60BS35H-L	#60 Sprocket 35 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	8.94
S60BS35H-N	#60 Sprocket 35 teeth, 1-5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	8.82
S60BS35H-O	#60 Sprocket 35 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	8.6
S60BS35H-P	#60 Sprocket 35 teeth, 1-7/8" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	8.54
S60BS35H-Q	#60 Sprocket 35 teeth, 1-15/16" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	8.46
S60BS35H-R	#60 Sprocket 35 teeth, 2" Bore, Hardened Teeth, Black Oxide Finish, 1/2 x 1/4 Keyway, (2) 1/2" Setscrews, 90 Degrees Apart	8.3
S60BS38H-L	#60 Sprocket 38 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	10.4
S60BS38H-O	#60 Sprocket 38 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	10.2
S60BS40H-I	#60 Sprocket 40 teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart	1
S60BS40H-L	#60 Sprocket 40 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	11.4
S60BS42H-L	#60 Sprocket 42 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	12.2
S60BS43H-L	#60 Sprocket 43 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	12.8
S60BS45H-L	#60 Sprocket 45 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	13.8
S60BS45H-O	#60 Sprocket 45 teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	13.6
S60BS46H-L	#60 Sprocket 46 teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart	14.28
