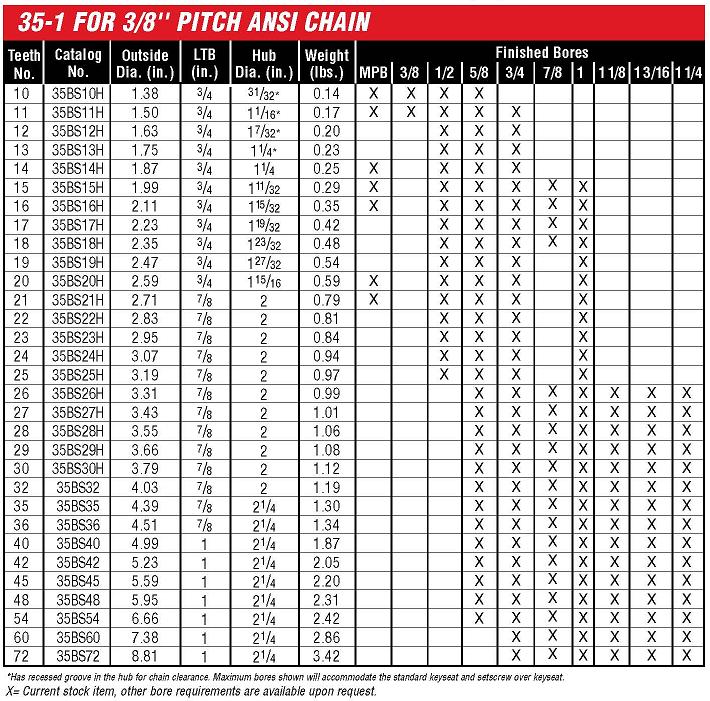

35 Series Bored-To-Size Sprockets
PRODUCT DESCRIPTION

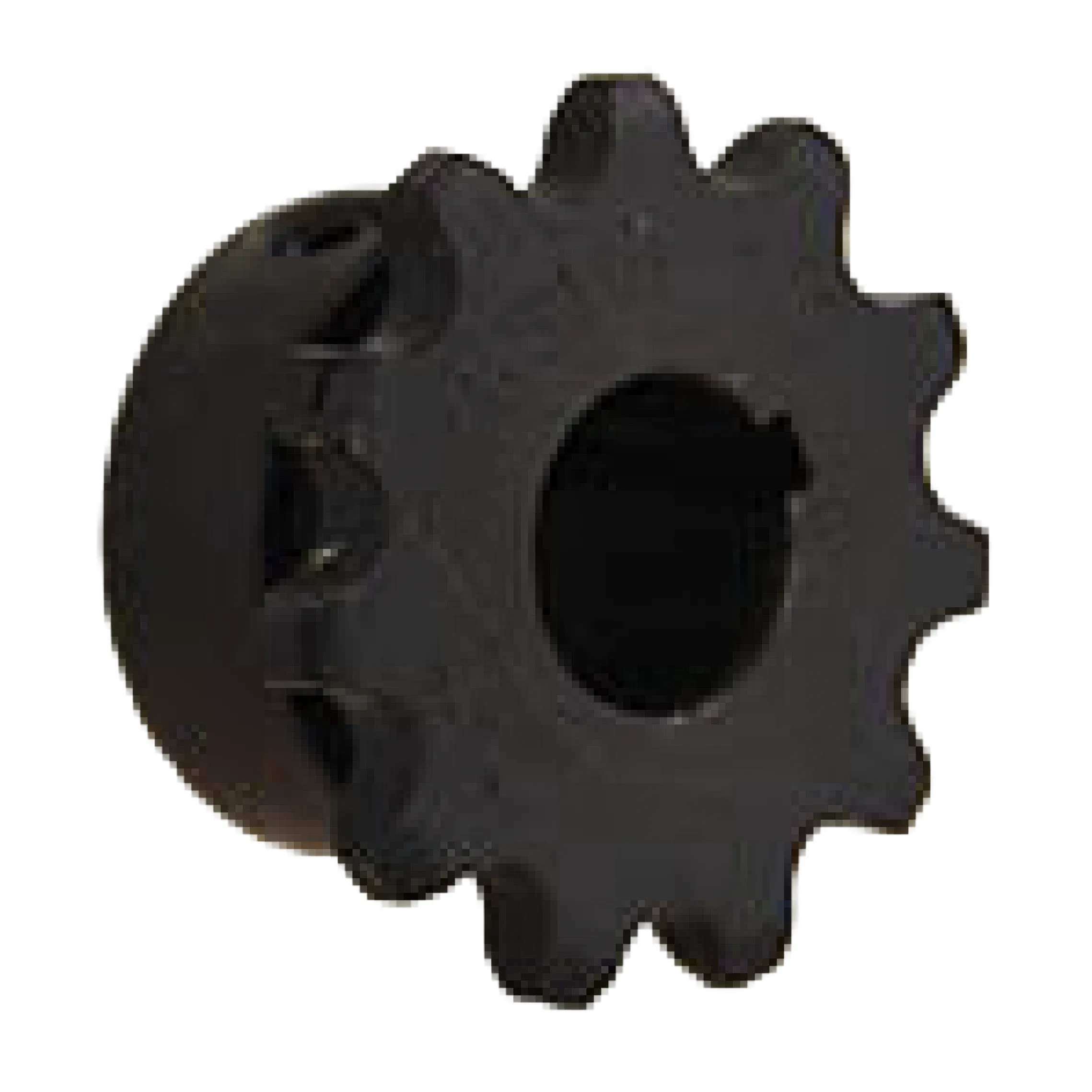

Type BS (Bored to Size). Hardened teeth – 2 set screws.
One-piece Forged Construction
| Item ID | Ext Desc | Weight (lbs) |
|---|---|---|
| S35BS10H-A | #35 Sprocket 10 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.14 |
| S35BS10H-AA | #35 Sprocket 10 Teeth, 3/8" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.14 |
| S35BS10H-B | #35 Sprocket 10 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.14 |
| S35BS11H-A | #35 Sprocket 11 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.17 |
| S35BS11H-AA | #35 Sprocket 11 Teeth, 3/8" Bore, Hardened Teeth, Black Oxide Finish, No Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.17 |
| S35BS11H-AAK | #35 Sprocket 11 Teeth, 3/8" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 1 |
| S35BS11H-ANK | #35 Sprocket 11 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, No Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.17 |
| S35BS11H-B | #35 Sprocket 11 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.17 |
| S35BS11H-C | #35 Sprocket 11 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.17 |
| S35BS12H-A | #35 Sprocket 12 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.2 |
| S35BS12H-B | #35 Sprocket 12 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.2 |
| S35BS12H-C | #35 Sprocket 12 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.2 |
| S35BS13H-A | #35 Sprocket 13 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.23 |
| S35BS13H-B | #35 Sprocket 13 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.23 |
| S35BS13H-C | #35 Sprocket 13 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.23 |
| S35BS14H-A | #35 Sprocket 14 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.25 |
| S35BS14H-B | #35 Sprocket 14 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.02 |
| S35BS14H-C | #35 Sprocket 14 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.25 |
| S35BS15H-A | #35 Sprocket 15 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.29 |
| S35BS15H-B | #35 Sprocket 15 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.29 |
| S35BS15H-C | #35 Sprocket 15 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.29 |
| S35BS15H-D | #35 Sprocket 15 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.29 |
| S35BS15H-F | #35 Sprocket 15 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.29 |
| S35BS16H-A | #35 Sprocket 16 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.35 |
| S35BS16H-B | #35 Sprocket 16 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.35 |
| S35BS16H-C | #35 Sprocket 16 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.35 |
| S35BS16H-D | #35 Sprocket 16 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.35 |
| S35BS16H-F | #35 Sprocket 16 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.35 |
| S35BS17H-A | #35 Sprocket 17 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.42 |
| S35BS17H-B | #35 Sprocket 17 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.42 |
| S35BS17H-C | #35 Sprocket 17 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.42 |
| S35BS17H-D | #35 Sprocket 17 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.42 |
| S35BS17H-F | #35 Sprocket 17 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.42 |
| S35BS18H-A | #35 Sprocket 18 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.48 |
| S35BS18H-B | #35 Sprocket 18 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.48 |
| S35BS18H-C | #35 Sprocket 18 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.48 |
| S35BS18H-D | #35 Sprocket 18 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.48 |
| S35BS18H-F | #35 Sprocket 18 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.48 |
| S35BS19H-A | #35 Sprocket 19 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.54 |
| S35BS19H-B | #35 Sprocket 19 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.54 |
| S35BS19H-C | #35 Sprocket 19 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.54 |
| S35BS19H-F | #35 Sprocket 19 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.54 |
| S35BS20H-A | #35 Sprocket 20 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.59 |
| S35BS20H-B | #35 Sprocket 20 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.59 |
| S35BS20H-C | #35 Sprocket 20 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.59 |
| S35BS20H-F | #35 Sprocket 20 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.59 |
| S35BS21H-A | #35 Sprocket 21 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.79 |
| S35BS21H-B | #35 Sprocket 21 Teeth, 5/8" Bore, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.79 |
| S35BS21H-C | #35 Sprocket 21 Teeth, 3/4" Bore, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.79 |
| S35BS21H-F | #35 Sprocket 21 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.79 |
| S35BS22H-A | #35 Sprocket 22 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.81 |
| S35BS22H-B | #35 Sprocket 22 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.81 |
| S35BS22H-C | #35 Sprocket 22 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.81 |
| S35BS22H-F | #35 Sprocket 22 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.81 |
| S35BS23H-A | #35 Sprocket 23 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.84 |
| S35BS23H-B | #35 Sprocket 23 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.84 |
| S35BS23H-C | #35 Sprocket 23 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.84 |
| S35BS23H-F | #35 Sprocket 23 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.84 |
| S35BS24H-A | #35 Sprocket 24 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.94 |
| S35BS24H-B | #35 Sprocket 24 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.94 |
| S35BS24H-C | #35 Sprocket 24 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.94 |
| S35BS24H-F | #35 Sprocket 24 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.94 |
| S35BS25H-A | #35 Sprocket 25 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.97 |
| S35BS25H-B | #35 Sprocket 25 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.97 |
| S35BS25H-C | #35 Sprocket 25 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.97 |
| S35BS25H-F | #35 Sprocket 25 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.97 |
| S35BS26H-B | #35 Sprocket 26 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.99 |
| S35BS26H-C | #35 Sprocket 26 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.99 |
| S35BS26H-D | #35 Sprocket 26 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.99 |
| S35BS26H-F | #35 Sprocket 26 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.99 |
| S35BS26H-G | #35 Sprocket 26 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.99 |
| S35BS26H-H | #35 Sprocket 26 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.99 |
| S35BS26H-I | #35 Sprocket 26 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.99 |
| S35BS27H-B | #35 Sprocket 27 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.01 |
| S35BS27H-C | #35 Sprocket 27 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.01 |
| S35BS27H-D | #35 Sprocket 27 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.01 |
| S35BS27H-F | #35 Sprocket 27 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.01 |
| S35BS27H-G | #35 Sprocket 27 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.01 |
| S35BS27H-H | #35 Sprocket 27 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.01 |
| S35BS27H-I | #35 Sprocket 27 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.01 |
| S35BS28H-B | #35 Sprocket 28 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.06 |
| S35BS28H-C | #35 Sprocket 28 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.06 |
| S35BS28H-D | #35 Sprocket 28 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.06 |
| S35BS28H-F | #35 Sprocket 28 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.06 |
| S35BS28H-G | #35 Sprocket 28 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.06 |
| S35BS28H-H | #35 Sprocket 28 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.06 |
| S35BS28H-I | #35 Sprocket 28 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.06 |
| S35BS29H-B | #35 Sprocket 29 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.08 |
| S35BS29H-C | #35 Sprocket 29 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.08 |
| S35BS29H-D | #35 Sprocket 29 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.08 |
| S35BS29H-F | #35 Sprocket 29 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.08 |
| S35BS29H-G | #35 Sprocket 29 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.08 |
| S35BS29H-H | #35 Sprocket 29 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.08 |
| S35BS29H-I | #35 Sprocket 29 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.08 |
| S35BS30H-B | #35 Sprocket 30 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.12 |
| S35BS30H-C | #35 Sprocket 30 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.12 |
| S35BS30H-D | #35 Sprocket 30 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.12 |
| S35BS30H-F | #35 Sprocket 30 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.12 |
| S35BS30H-G | #35 Sprocket 30 teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.12 |
| S35BS30H-H | #35 Sprocket 30 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.12 |
| S35BS30H-I | #35 Sprocket 30 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.12 |
| S35BS32-B | #35 Sprocket 32 Teeth, 5/8" Bore, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.19 |
| S35BS32-C | #35 Sprocket 32 Teeth, 3/4" Bore, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.19 |
| S35BS32-D | #35 Sprocket 32 Teeth, 7/8" Bore, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.19 |
| S35BS32-F | #35 Sprocket 32 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.19 |
| S35BS32-G | #35 Sprocket 32 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.19 |
| S35BS32-H | #35 Sprocket 32 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.19 |
| S35BS32-I | #35 Sprocket 32 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.8 |
| S35BS35-B | #35 Sprocket 35 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.3 |
| S35BS35-C | #35 Sprocket 35 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.3 |
| S35BS35-D | #35 Sprocket 35 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.3 |
| S35BS35-F | #35 Sprocket 35 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.3 |
| S35BS35-G | #35 SPROCKET 35 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.3 |
| S35BS35-H | #35 Sprocket 35 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.3 |
| S35BS35-I | #35 Sprocket 35 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.3 |
| S35BS36-B | #35 Sprocket 36 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.34 |
| S35BS36-C | #35 Sprocket 36 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.34 |
| S35BS36-D | #35 Sprocket 36 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.34 |
| S35BS36-F | #35 Sprocket 36 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.34 |
| S35BS36-G | #35 Sprocket 36 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.34 |
| S35BS36-H | #35 Sprocket 36 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.34 |
| S35BS36-I | #35 Sprocket 36 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.34 |
| S35BS40-A | #35 Sprocket, 40 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 1.87 |
| S35BS40-ANK | #35 Sprocket, 40 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish,, No Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 1.87 |
| S35BS40-B | #35 Sprocket 40 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.87 |
| S35BS40-C | #35 Sprocket 40 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.87 |
| S35BS40-D | #35 Sprocket 40 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.87 |
| S35BS40-F | #35 Sprocket 40 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.87 |
| S35BS40-G | #35 Sprocket 40 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.87 |
| S35BS40-H | #35 Sprocket 40 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.87 |
| S35BS40-I | #35 Sprocket 40 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.87 |
| S35BS42-B | #35 Sprocket 42 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.05 |
| S35BS42-C | #35 Sprocket 42 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.05 |
| S35BS42-D | #35 Sprocket 42 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.05 |
| S35BS42-F | #35 Sprocket 42 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.05 |
| S35BS42-G | #35 Sprocket 42 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.05 |
| S35BS42-H | #35 Sprocket 42 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.05 |
| S35BS42-I | #35 Sprocket 42 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.05 |
| S35BS45-B | #35 Sprocket 45 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.2 |
| S35BS45-C | #35 Sprocket 45 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.2 |
| S35BS45-D | #35 Sprocket 45 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.2 |
| S35BS45-F | #35 Sprocket 45 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.2 |
| S35BS45-G | #35 Sprocket 45 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.2 |
| S35BS45-H | #35 Sprocket 45 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.2 |
| S35BS45-I | #35 Sprocket 45 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.2 |
| S35BS48-B | #35 Sprocket 48 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.31 |
| S35BS48-C | #35 Sprocket 48 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.31 |
| S35BS48-D | #35 Sprocket 48 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.31 |
| S35BS48-F | #35 Sprocket 48 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.31 |
| S35BS48-G | #35 Sprocket 48 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.31 |
| S35BS48-H | #35 Sprocket 48 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.31 |
| S35BS48-I | #35 Sprocket 48 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.31 |
| S35BS54-B | #35 Sprocket 54 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.42 |
| S35BS54-C | #35 Sprocket 54 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.42 |
| S35BS54-D | #35 Sprocket 54 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.42 |
| S35BS54-F | #35 Sprocket 54 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.42 |
| S35BS54-G | #35 Sprocket 54 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.42 |
| S35BS54-H | #35 Sprocket 54 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.42 |
| S35BS54-I | #35 Sprocket 54 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.42 |
| S35BS60-C | #35 Sprocket 60 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.86 |
| S35BS60-D | #35 Sprocket 60 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.86 |
| S35BS60-F | #35 Sprocket 60 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.86 |
| S35BS60-G | #35 Sprocket 60 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.86 |
| S35BS60-H | #35 Sprocket 60 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.86 |
| S35BS60-I | #35 Sprocket 60 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.86 |
| S35BS72-C | #35 Sprocket 72 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 3.42 |
| S35BS72-D | #35 Sprocket 72 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 3.42 |
| S35BS72-F | #35 Sprocket 72 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 3.42 |
| S35BS72-G | #35 Sprocket 72 Teeth 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 3.42 |
| S35BS72-H | #35 Sprocket 72 Teeth 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 3.42 |
| S35BS72-I | #35 Sprocket 72 Teeth 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 3.42 |
Related products
-
40 Series QD Standard Sprockets
-
80 Series Bored-To-Size Sprockets
-
40 Series Weld-on Sprocket
-
50 Series Bored-To-Size Sprockets
