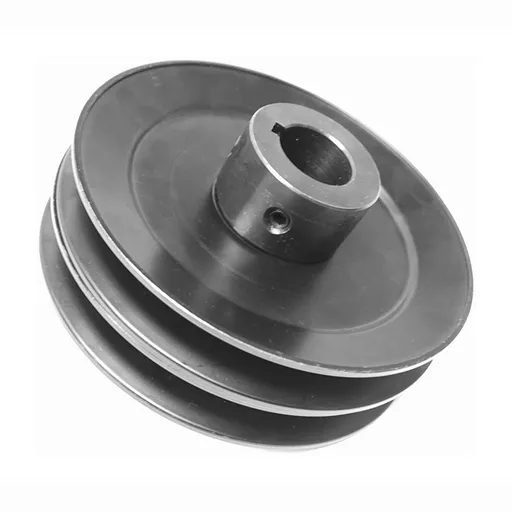

Double Pulley Hubs

Assembly in 3 easy steps

Clamp one pulley flush against the shoulder of the Double Pulley Hub and weld both together
Slide the second pulley into the 1 5/8” diameter step.
Clamp so that it is tight against the first pulley and weld the pulley to the hub on the 1 5/8” diameter step.

The Double Pulley Hubs are designed to eliminate any special fixtures for pulley alignment and positioning.

Item ID	Ext Desc	Weight (lbs)
DPH0075	Double Pulley Hub, 3/4" Bore, 3/16" keyway, (2) 1/4-20 Setscrews, mild steel	1.2
DPH0875	Double Pulley Hub, 7/8" Bore, 3/16" keyway, (2) 1/4-20 Setscrews, mild steel	1
DPH1000	Double Pulley Hub, 1" Bore, 1/4" keyway, (2) 5/16-18 Setscrews, mild steel	0.44
DPH1125	Double Pulley Hub, 1-1/8" Bore, 1/4" keyway, (2) 5/16-18 Setscrews, mild steel	0.8
DPH1250	Double Pulley Hub, 1-1/4" Bore, 1/4" keyway, (2) 5/16-18 Setscrews, mild steel	0.66
DPH1250-X	Double Pulley Hub, 1-1/4" Bore, 1/4" keyway, (2) 5/16-18 Setscrews, to fit "X" Hub, mild steel	1.6
DPH1375-X	Double Pulley Hub, 1.375" Bore, standard Keyway, (2) Setscrews, to fit "X" Hub	1.4
DPH1500-X	Double Pulley Hub, 1.500" Bore, standard Keyway, (2) Setscrews, to fit "X" Hub	1.2
