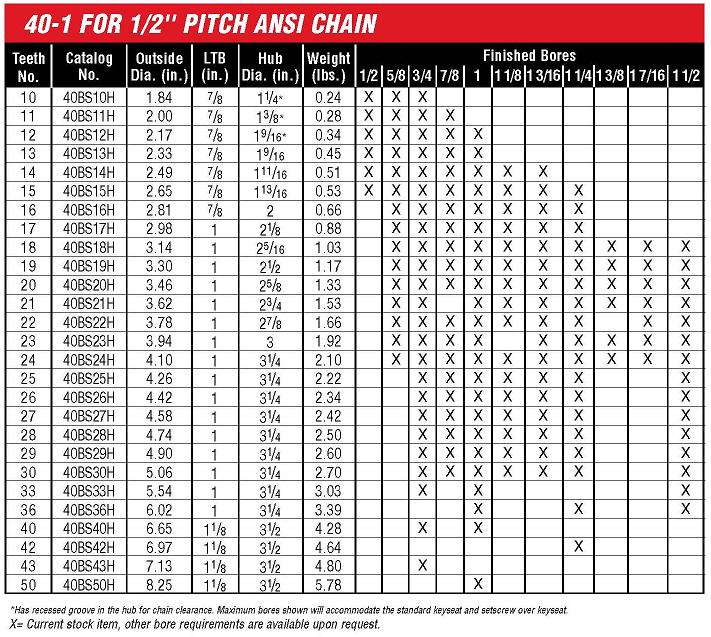

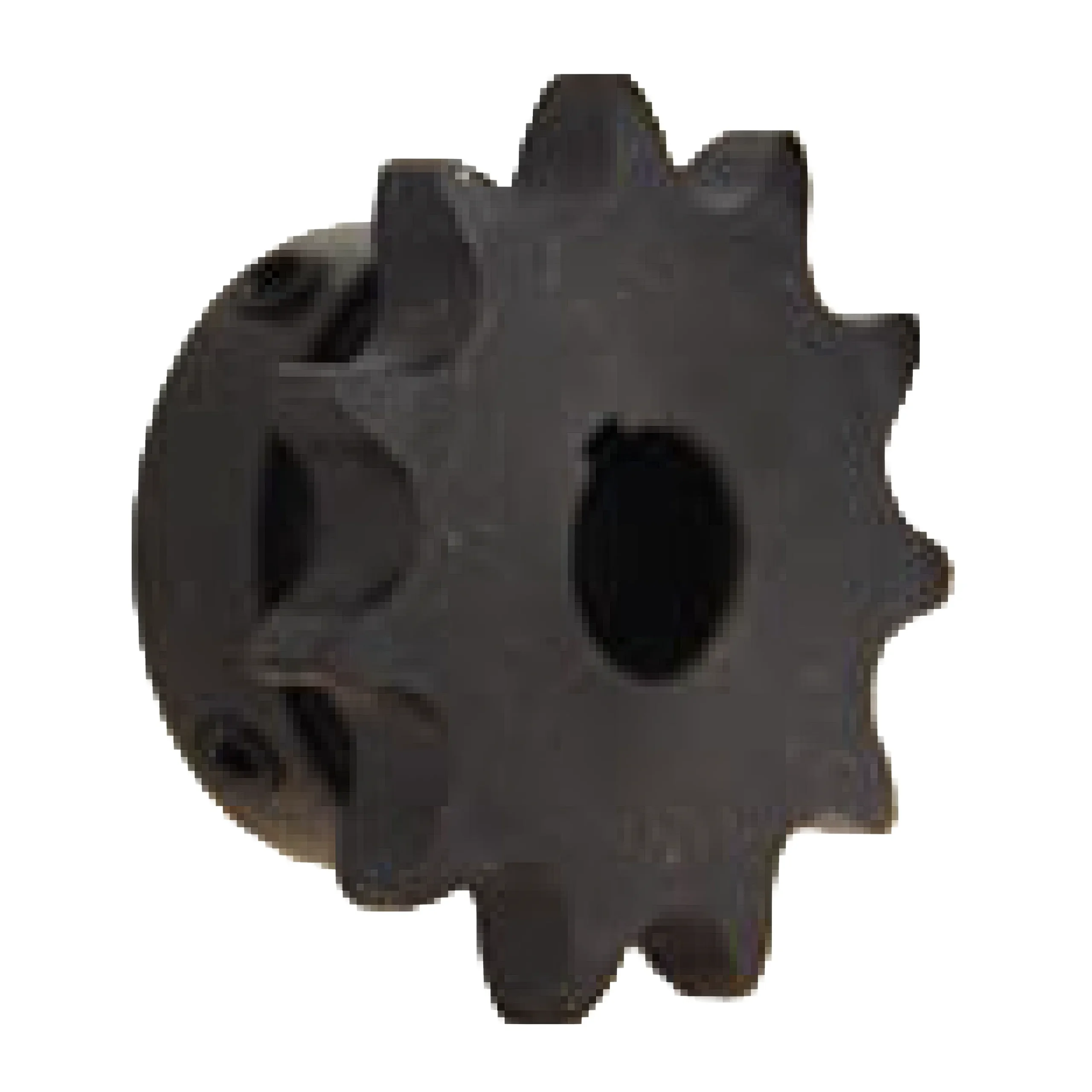

40 Series Bored-To-Size Sprockets
PRODUCT DESCRIPTION
Type BS (Bored to Size). Hardened teeth – 2 set screws
One-piece Forged Construction
| Item ID | Ext Desc | Weight (lbs) |
|---|---|---|
| S40BS10H-A | #40 Sprocket 10 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.26 |
| S40BS10H-B | #40 Sprocket 10 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.24 |
| S40BS10H-C | #40 Sprocket 10 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.22 |
| S40BS11H-A | #40 Sprocket 11 Teeth 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.34 |
| S40BS11H-B | #40 Sprocket 11 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.32 |
| S40BS11H-C | #40 Sprocket 11 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.86 |
| S40BS11H-D | #40 Sprocket 11 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.24 |
| S40BS12H-A | #40 Sprocket 12 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.44 |
| S40BS12H-B | #40 Sprocket 12 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.4 |
| S40BS12H-C | #40 Sprocket 12 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.38 |
| S40BS12H-D | #40 Sprocket 12 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.34 |
| S40BS12H-F | #40 Sprocket 12 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.28 |
| S40BS13H-A | #40 Sprocket 13 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.5 |
| S40BS13H-B | #40 Sprocket 13 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.48 |
| S40BS13H-C | #40 Sprocket 13 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.4 |
| S40BS13H-D | #40 Sprocket 13 Teeth 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.4 |
| S40BS13H-F | #40 Sprocket 13 Teeth 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.36 |
| S40BS14H-A | #40 Sprocket 14 Teeth 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.6 |
| S40BS14H-B | #40 Sprocket 14 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.56 |
| S40BS14H-C | #40 Sprocket 14 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.56 |
| S40BS14H-D | #40 Sprocket 14 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.5 |
| S40BS14H-F | #40 Sprocket 14 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.44 |
| S40BS14H-G | #40 Sprocket 14 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.4 |
| S40BS14H-H | #40 Sprocket 14 Teeth, 1 3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.36 |
| S40BS15H-A | #40 Sprocket 15 Teeth, 1/2" Bore, Hardened Teeth, Black Oxide Finish, 1/8 x 1/16 Keyway, (2) 10-24 Setscrews, 90 Degrees Apart | 0.7 |
| S40BS15H-B | #40 Sprocket 15 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.66 |
| S40BS15H-C | #40 Sprocket 15 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.62 |
| S40BS15H-D | #40 Sprocket 15 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.58 |
| S40BS15H-F | #40 Sprocket 15 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.54 |
| S40BS15H-G | #40 Sprocket 15 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.5 |
| S40BS15H-H | #40 Sprocket 15 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.48 |
| S40BS15H-I | #40 Sprocket 15 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.44 |
| S40BS16H-B | #40 Sprocket 16 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.8 |
| S40BS16H-C | #40 Sprocket 16 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.76 |
| S40BS16H-D | #40 Sprocket 16 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.72 |
| S40BS16H-F | #40 Sprocket 16 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.68 |
| S40BS16H-G | #40 Sprocket 16 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.64 |
| S40BS16H-H | #40 Sprocket 16 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.6 |
| S40BS16H-I | #40 Sprocket 16 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.58 |
| S40BS17H-B | #40 Sprocket 17 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.02 |
| S40BS17H-C | #40 Sprocket 17 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1 |
| S40BS17H-D | #40 Sprocket 17 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 0.96 |
| S40BS17H-F | #40 Sprocket 17 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.94 |
| S40BS17H-G | #40 Sprocket 17 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.84 |
| S40BS17H-H | #40 Sprocket 17 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.8 |
| S40BS17H-I | #40 Sprocket 17 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.76 |
| S40BS18H-B | #40 Sprocket 18 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.2 |
| S40BS18H-C | #40 Sprocket 18 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.18 |
| S40BS18H-D | #40 Sprocket 18 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.12 |
| S40BS18H-F | #40 Sprocket 18 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.08 |
| S40BS18H-G | #40 Sprocket 18 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.02 |
| S40BS18H-H | #40 Sprocket 18 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.08 |
| S40BS18H-I | #40 Sprocket 18 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.96 |
| S40BS18H-J | #40 Sprocket 18 Teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 0.86 |
| S40BS18H-K | #40 Sprocket 18 Teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 0.82 |
| S40BS18H-L | #40 Sprocket 18 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 0.8 |
| S40BS19H-B | #40 Sprocket 19 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.42 |
| S40BS19H-C | #40 Sprocket 19 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.17 |
| S40BS19H-D | #40 Sprocket 19 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.34 |
| S40BS19H-F | #40 Sprocket 19 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.26 |
| S40BS19H-G | #40 Sprocket 19 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.22 |
| S40BS19H-H | #40 Sprocket 19 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.18 |
| S40BS19H-I | #40 Sprocket 19 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.14 |
| S40BS19H-J | #40 Sprocket 19 Teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.08 |
| S40BS19H-K | #40 Sprocket 19 Teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1.04 |
| S40BS19H-L | #40 Sprocket 19 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1 |
| S40BS20H-B | #40 Sprocket 20 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.62 |
| S40BS20H-C | #40 Sprocket 20 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.52 |
| S40BS20H-D | #40 Sprocket 20 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.48 |
| S40BS20H-F | #40 Sprocket 20 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.42 |
| S40BS20H-G | #40 Sprocket 20 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.38 |
| S40BS20H-H | #40 Sprocket 20 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.32 |
| S40BS20H-I | #40 Sprocket 20 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.3 |
| S40BS20H-J | #40 Sprocket 20 Teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.22 |
| S40BS20H-K | #40 Sprocket 20 Teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1.18 |
| S40BS20H-L | #40 Sprocket 20 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1.2 |
| S40BS21H-B | #40 Sprocket 21 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.74 |
| S40BS21H-C | #40 Sprocket 21 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.7 |
| S40BS21H-F | #40 Sprocket 21 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.6 |
| S40BS21H-G | #40 Sprocket 21 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.54 |
| S40BS21H-H | #40 Sprocket 21 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.34 |
| S40BS21H-I | #40 Sprocket 21 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.48 |
| S40BS21H-J | #40 Sprocket 21 Teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.4 |
| S40BS21H-K | #40 Sprocket 21 Teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1.36 |
| S40BS21H-L | #40 Sprocket 21 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1.32 |
| S40BS22H-B | #40 Sprocket 22 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.92 |
| S40BS22H-C | #40 Sprocket 22 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.86 |
| S40BS22H-D | #40 Sprocket 22 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 1.84 |
| S40BS22H-F | #40 Sprocket 22 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.78 |
| S40BS22H-G | #40 Sprocket 22 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.72 |
| S40BS22H-H | #40 Sprocket 22 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.68 |
| S40BS22H-I | #40 Sprocket 22 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.64 |
| S40BS22H-J | #40 Sprocket 22 Teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.6 |
| S40BS22H-K | #40 Sprocket 22 Teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1.52 |
| S40BS22H-L | #40 Sprocket 22 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1.48 |
| S40BS23H-B | #40 Sprocket 23 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.1 |
| S40BS23H-C | #40 Sprocket 23 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.08 |
| S40BS23H-D | #40 Sprocket 23 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.02 |
| S40BS23H-F | #40 Sprocket 23 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.02 |
| S40BS23H-H | #40 Sprocket 23 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.88 |
| S40BS23H-I | #40 Sprocket 23 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.84 |
| S40BS23H-J | #40 Sprocket 23 Teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 1.78 |
| S40BS23H-K | #40 Sprocket 23 Teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1.72 |
| S40BS23H-L | #40 Sprocket 23 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 1.68 |
| S40BS24H-B | #40 Sprocket 24 Teeth, 5/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.5 |
| S40BS24H-C | #40 Sprocket 24 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.38 |
| S40BS24H-D | #40 Sprocket 24 Teeth, 7/8" Bore, Hardened Teeth, Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.32 |
| S40BS24H-F | #40 Sprocket 24 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.28 |
| S40BS24H-G | #40 Sprocket 24 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.22 |
| S40BS24H-H | #40 Sprocket 24 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.2 |
| S40BS24H-I | #40 Sprocket 24 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.16 |
| S40BS24H-J | #40 Sprocket 24 Teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.08 |
| S40BS24H-K | #40 Sprocket 24 Teeth, 1-7/16" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 2.04 |
| S40BS24H-L | #40 Sprocket 24 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 2 |
| S40BS25H-C | #40 Sprocket 25 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.44 |
| S40BS25H-D | #40 Sprocket 25 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.4 |
| S40BS25H-F | #40 Sprocket 25 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.36 |
| S40BS25H-G | #40 Sprocket 25 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.3 |
| S40BS25H-H | #40 Sprocket 25 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.24 |
| S40BS25H-I | #40 Sprocket 25 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.22 |
| S40BS25H-L | #40 Sprocket 25 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 2.06 |
| S40BS26H-C | #40 Sprocket 26 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.54 |
| S40BS26H-D | #40 Sprocket 26 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.48 |
| S40BS26H-F | #40 Sprocket 26 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.42 |
| S40BS26H-G | #40 Sprocket 26 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.38 |
| S40BS26H-H | #40 Sprocket 26 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.34 |
| S40BS26H-I | #40 Sprocket 26 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.3 |
| S40BS26H-L | #40 Sprocket 26 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 2.14 |
| S40BS27H-C | #40 Sprocket 27 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.6 |
| S40BS27H-D | #40 Sprocket 27 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.56 |
| S40BS27H-F | #40 Sprocket 27 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.5 |
| S40BS27H-G | #40 Sprocket 27 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.44 |
| S40BS27H-H | #40 Sprocket 27 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.42 |
| S40BS27H-I | #40 Sprocket 27 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.38 |
| S40BS27H-L | #40 Sprocket 27 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 2.22 |
| S40BS28H-C | #40 Sprocket 28 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.5 |
| S40BS28H-D | #40 Sprocket 28 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.64 |
| S40BS28H-F | #40 Sprocket 28 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.58 |
| S40BS28H-G | #40 Sprocket 28 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.54 |
| S40BS28H-H | #40 Sprocket 28 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.5 |
| S40BS28H-I | #40 Sprocket 28 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.46 |
| S40BS28H-L | #40 Sprocket 28 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 2.32 |
| S40BS29H-C | #40 Sprocket 29 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.78 |
| S40BS29H-D | #40 Sprocket 29 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.72 |
| S40BS29H-F | #40 Sprocket 29 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.68 |
| S40BS29H-G | #40 Sprocket 29 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.62 |
| S40BS29H-H | #40 Sprocket 29 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.6 |
| S40BS29H-I | #40 Sprocket 29 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.56 |
| S40BS29H-J | #40 Sprocket 29 Teeth, 1-3/8" Bore, Hardened Teeth, Black Oxide Finish, 5/16 x 5/32 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.4 |
| S40BS29H-L | #40 Sprocket 29 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 2.4 |
| S40BS30H-C | #40 Sprocket 30 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.88 |
| S40BS30H-D | #40 Sprocket 30 Teeth, 7/8" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 2.82 |
| S40BS30H-F | #40 Sprocket 30 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.78 |
| S40BS30H-G | #40 Sprocket 30 Teeth, 1-1/8" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.72 |
| S40BS30H-H | #40 Sprocket 30 Teeth, 1-3/16" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.68 |
| S40BS30H-I | #40 Sprocket 30 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 2.64 |
| S40BS30H-L | #40 Sprocket 30 Teeth, 1-1/2" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 2.48 |
| S40BS30H-O | #40 Sprocket 30 Teeth, 1-3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/8 x 3/16 Keyway, (2) 3/8" Setscrews, 90 Degrees Apart | 2.88 |
| S40BS32H-F | #40 Sprocket 32 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 3 |
| S40BS33H-C | #40 Sprocket 33 teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 3.03 |
| S40BS33H-F | #40 Sprocket 33 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 3 |
| S40BS36H-F | #40 Sprocket 36 teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 3.48 |
| S40BS36H-I | #40 Sprocket 36 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 3.48 |
| S40BS38H-F | #40 Sprocket 38 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 3.8 |
| S40BS40H-C | #40 Sprocket,40 teeth, 3/4" Bore, 3/16" keyway, 2 setscrews, Hardened Teeth | 4.44 |
| S40BS40H-F | #40 Sprocket 40 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 4.4 |
| S40BS40H-I | #40 Sprocket 40 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart. TIMED KEYWAY | 4.3 |
| S40BS42H-I | #40 Sprocket 42 Teeth, 1-1/4" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 4.5 |
| S40BS43H-C | #40 Sprocket 43 Teeth, 3/4" Bore, Hardened Teeth, Black Oxide Finish, 3/16 x 3/32 Keyway, (2) 1/4" Setscrews, 90 Degrees Apart | 4.9 |
| S40BS50H-F | #40 Sprocket 50 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 5.74 |
| S40BS54H-F | #40 Sprocket 54 Teeth, 1" Bore, Hardened Teeth, Black Oxide Finish, 1/4 x 1/8 Keyway, (2) 5/16" Setscrews, 90 Degrees Apart | 6.5 |
Related products
-
50 Series QD Standard Sprockets
-
Single Groove Cast Iron Sheaves – Finished Bore
-
Round or Hex Shaft Coupler
-
25 Series Bored-To-Size Sprockets
