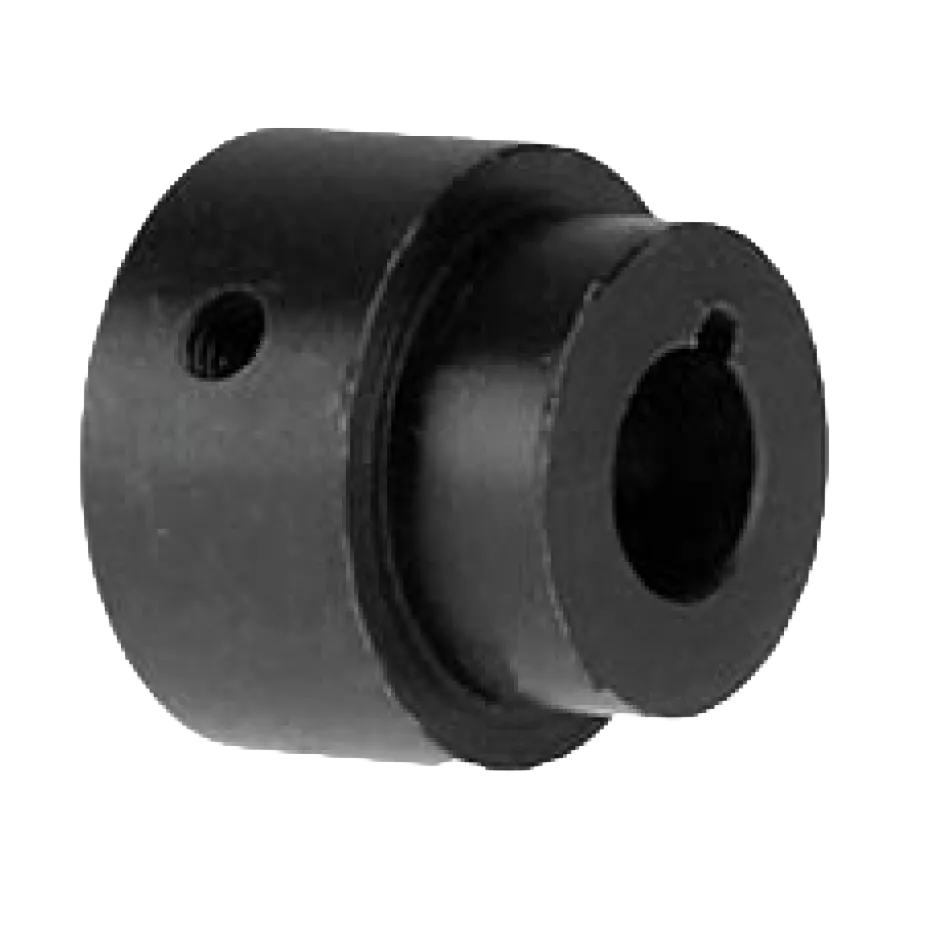

V Series Weld Hubs
PRODUCT DESCRIPTION
Fits “V” type sprockets and pulleys. Furnished with standard keyway and two set screws.
DIMENSIONS (in inches):
- A: 1 1/8
- B: 1 7/16
- C: 7/16
- D: 3/4
- E: 1 3/16
| Item ID | Ext Desc | Weight (lbs) |
|---|---|---|
| HV1/2 | V Hub - 1/2" Bore, 1/8" keyway, (2) 10-24 Setscrews, Black oxide finish | 0.4 |
| HV11/16 | V Hub - 11/16" Bore, 3/16" keyway, (2) 1/4" Setscrews, Black oxide finish | 0.32 |
| HV13/16 | V Hub - 13/16" Bore, 3/16" keyway, (2) 1/4" Setscrews, Black oxide finish | 0.25 |
| HV3/4 | V Hub - 3/4" Bore, 3/16" keyway, (2) 1/4" Setscrews, Black oxide finish | 0.32 |
| HV5/8 | V Hub - 5/8" Bore, 3/16" keyway, (2) 1/4" Setscrews, Black oxide finish | 0.38 |
| HV7/16 | V hub - 7/16" Bore, 3/16" keyway, (2) 1/4" Setscrews, Black oxide finish | 0.35 |
| HV7/8 | V Hub - 7/8" Bore, 3/16" keyway, (2) 1/4" Setscrews, Black oxide finish | 0.25 |
| HV9/16 | V Hub - 9/16" Bore, 1/8" keyway, (2) 10-24 Setscrews, Black oxide finish | 0.38 |
